$6,450
Newport, NC
COPY AND PASTE THE LINK BELOW INTO A NEW BROWSER FOR MORE PICTURES
https://photos.google.com/share/AF1QipMqczKaXrPTTlzUhgCUuIA8sr6WyCwxsoQJhnrxyY-tLoZad23Xjye2TG3n_VKFEQ?key=Tjdwa0pCbm14NHBNLUZodFI4c2syZWxDMkNNVFBB
GO TO BOXTRUCKSS.COM FOR MORE INFORMATION & INVENTORY
Call David 252-916-4805
Make JLG
Model 1932RS
Year 2015
Odometer 389
Condition Excellent
Fuel Electric
Location Newport NC 28570

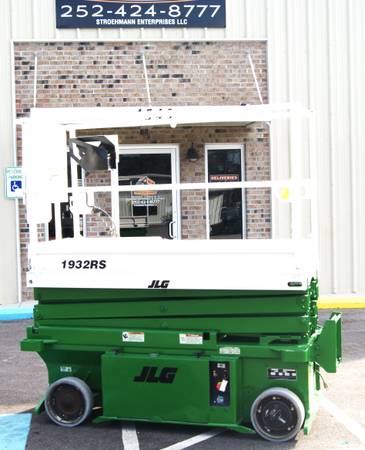

2015 JLG 1932RS 26’ Scissor Lift New Batteries 389 HOURS
Hello and thank you for taking the time to look at our listing. At Stroehmann Commercial Trucks & Equipment we take the time to make sure all the equipment we sell is fully serviced and that any repairs are performed prior to putting them up for sale. When we deliver a machine to you, it WILL NOT HAVE ANY KNOWN ISSUES and will be ready to go to work.
Buy with confidence that you are getting a piece of equipment you can rely on.
Our first step is the mechanical inspection process. The equipment is physically & electronically inspected from front to back and top to bottom before anything else is done. We do not put any equipment up for sale with active codes or any known issues.
OVERVIEW
Passive pothole protection eliminates all moving parts in the pothole protection system, reducing the need for repair or replacement
Ability to traverse grades of up to 25%
Innovative operator controls, similar to the ES Series, and compact dimensions enable travel through doorways
The direct electric drive delivers industry-leading duty cycles
Leak points are minimized with a design that includes 4 hydraulic hoses
Battery storage areas are easily accessible and have no drawers to pull out
SPECIFICATIONS
Power Source
Batteries
4 x 6V, 220 A-h
Charger
25 A
General Specifications
Brakes
Electric, Friction
Capacity – Hydraulic Reservoir
5 L / 1.3 gal.
Ground Bearing Pressure
10.01 Kg/cm2 / 143 psi
Hydraulic Pump
Fixed Displacement Gear
Machine Weight
1564.89 kg / 3450 lb
Performance Data
Turning Radius – Inside
0.61 m / 2 ft
Drive Speed – Platform Elevated
0.48 km/h / 0.3 mph
Drive Speed – Platform Lowered
4.02 km/h / 2.5 mph
Drive System
Electric Rear Wheel
Gradeability
25 %
Lift Time
25 sec.
Lower Time
26 sec.
Maximum Drive Height
5.79 m / 19 ft
Maximum Lift Height
5.79 m / 19 ft
Platform Capacity – Extension
113.40 kg / 250 lb
Platform Capacity – Unrestricted
226.80 kg / 500 lb
Turning Radius – Outside
2.21 m / 7 ft 3 in.
Dimensional Data
Ground Clearance
0.08 m / 3 in.
Machine Height
2.02 m / 6 ft 7 in.
Machine Length
2.07 m / 6 ft 9 in.
Machine Width
0.81 m / 2 ft 8 in.
Platform Dimension A
1.83 m / 6 ft
Platform Dimension B
0.69 m / 2 ft 3 in.
Platform Extension Length
0.91 m / 3 ft
Platform Height
5.79 m / 19 ft
Platform Height – Lowered
1 m / 3 ft 3 in.
Platform Railing Height
1.02 m / 3 ft 4 in.
Tyre Size
12.5 x 4 in
Wheelbase
1.4 m / 4 ft 7 in.
Reach Specifications
Platform Height
5.79 m / 19 ft
Working Height
7.62 m / 25 ft
SERVICE & REPAIRS PERFORMED ON THIS MACHINE
Fully Serviced & Inspected
All filters have been replaced
Greased
4 New USA Batteries
Repainted
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
