- Robotrax central steel wire absorbs tensile loads, isolating conductors and dramatically extending cable lifespan.
- Spherical link design enables smooth three-axis bending and modular chambers separate power, data, and fluid lines.
- The PBU active retraction maintains optimal tension, prevents slack-induced collisions, and mounts to KUKA, ABB, and FANUC robots.
- Specialized accessories like heat shields, safety covers, and LineFix clamps protect lines against heat, chemicals, and axial variation.
This short article is offered you by Tsubaki KabelSchlepp
In modern computerized production, six-axis articulated robotics perform high-speed, multidirectional maneuvers under demanding operational cycles. However, as robotic arms swivel, turn, and expand, the electric cords, fiber optics , and pneumatic hose pipes supplying them withstand severe mechanical stress and anxiety. Torsional spin, quick velocity, and duplicated call with equipment frameworks frequently bring about early conductor tiredness, insulation break down, and pricey unplanned manufacturing halts.
To get over these multi-axis activity obstacles, the Tsubaki KabelSchlepp Robotrax System gives a specialized three-dimensional wire carrier crafted particularly for complex robotic motion.
Taking Care Of High Tensile Forces With Central Steel Modern Technology
Standard cable service providers commonly transfer functional motion stress and anxiety directly onto inner electric lines and tubes. The Robotrax system adjustments this dynamic with a main steel wire that runs through the core of every chain web link.
The Robotrax system’s main steel cable absorbs the key tensile loads and protects conductor integrity, drastically extending cable life span.
When robotic arms go through rapid directional shifts and velocities approximately 10 g, this interior steel wire soaks up the key tensile loads. By isolating electric and fluid lines from pulling forces, the layout maintains conductor stability and significantly prolongs cable television life span. Auto mechanics can easily calibrate and readjust system stress utilizing an incorporated clamping item, guaranteeing constant mechanical support throughout lengthy functional cycles.
Spherical Web Link Design and Modular Cable Routing
The foundation of the Robotrax system lies in its open, single-piece plastic web links featuring spherical snap-on links on both sides. This geometry enables the carrier to bend smoothly throughout three axes, offering radial rotation of as much as ± 450 degrees per meter depending upon the version dimension.
To enhance internal organization, carrier web links have up to three distinctive chambers. This physical splitting up avoids signal interference and mechanical abrasion between hefty power lines , sensitive data channels, and liquid hose pipes. For conventional designs (R 040 through R 100, specialists can press cables directly into the provider without tools, dramatically minimizing installation and upkeep time. Larger arrangements, such as the R 140 X, include pivoting crossbars with snap locks along with upright and straight divider panels for tailored interior dividing.
Active Retraction and Effect Security
Large robotic work envelopes and high-speed movement trajectories can cause loose cable service provider loopholes to swing and strike the robot body. To eliminate these harmful accidents, Tsubaki KabelSchlepp incorporates the Draw back Device (PBU).
The PBU functions as an active retraction mechanism that maintains ideal stress on the cable television service provider throughout the whole motion cycle. By avoiding excess slack and eliminating interfering contours, the PBU minimizes collision dangers throughout intricate activity paths. The device requires no maintenance on its retraction component and offers basic mounting setups for leading commercial robotic platforms, consisting of KUKA , ABB , and FANUC

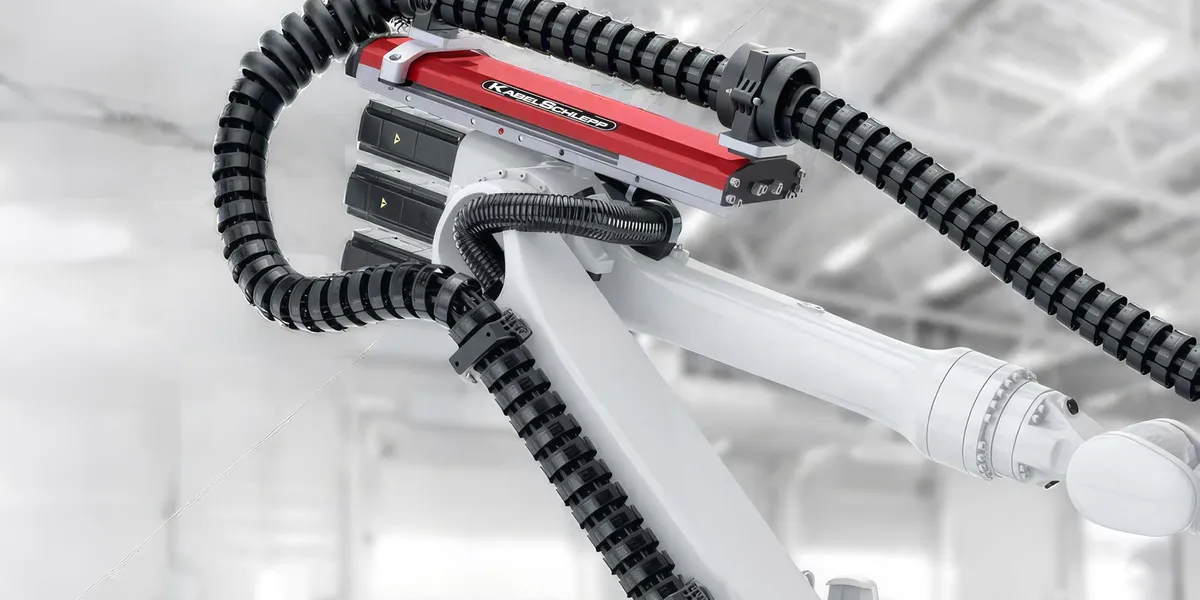

Tsubaki KabelSchlepp’s Pull Back Device keeps optimum tension on the cord provider and minimizes accident dangers across intricate motion courses.
Additionally, external guards can be retrofitted onto private chain links. These resilient effect shields restrict the minimum flexing distance to avoid over-flexing while securing the chain body from severe outside abrasion. If wear occurs, technicians just change the modular guard instead of the whole wire service provider assembly.
Developed for Requiring Industrial Environments
From automobile welding cells to high-speed machining facilities, Robotrax systems adjust to extreme working conditions with customized safety accessories:
- Heat Shields: Aluminum-coated fabric fiber covers shield versus radiated warmth, warm weld spatter, and flying sparks.
- Safety Covers: Layered polyester sleeves secure delicate lines versus aggressive reducing liquids, hydraulic oils, paint overspray, and abrasive dirt.
- LineFix Pressure Relief: Multi-layer clamping gadgets anchor wires securely at both ends to prevent axial variation throughout extreme movement.
By combining main load absorption, multi-axis adaptability, and active retraction control, the Robotrax system offers plant engineers and system integrators a reliable path toward optimizing robotic uptime and decreasing complete functional expenses.
